Water Driven Type B Chemical Sprayer with Bottle
$111.50
Type B chemical sprayer with bottle assembly uses water pressure for controlled chemical mixing with stainless wetted parts and dosing options.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 16 × 3 × 2 in |
| Length | 16 “ |
| Width | 3 |
| Height | 2 |
| Fluid | Solvent / Chemical / Soap, Water |
| Material | Stainless (Food Grade) |
| Siphon Rate (Select orifice size) | Small Orifice (approx. 10 Oz/min), Regular Orifice (approximately 2 Qt/min) |

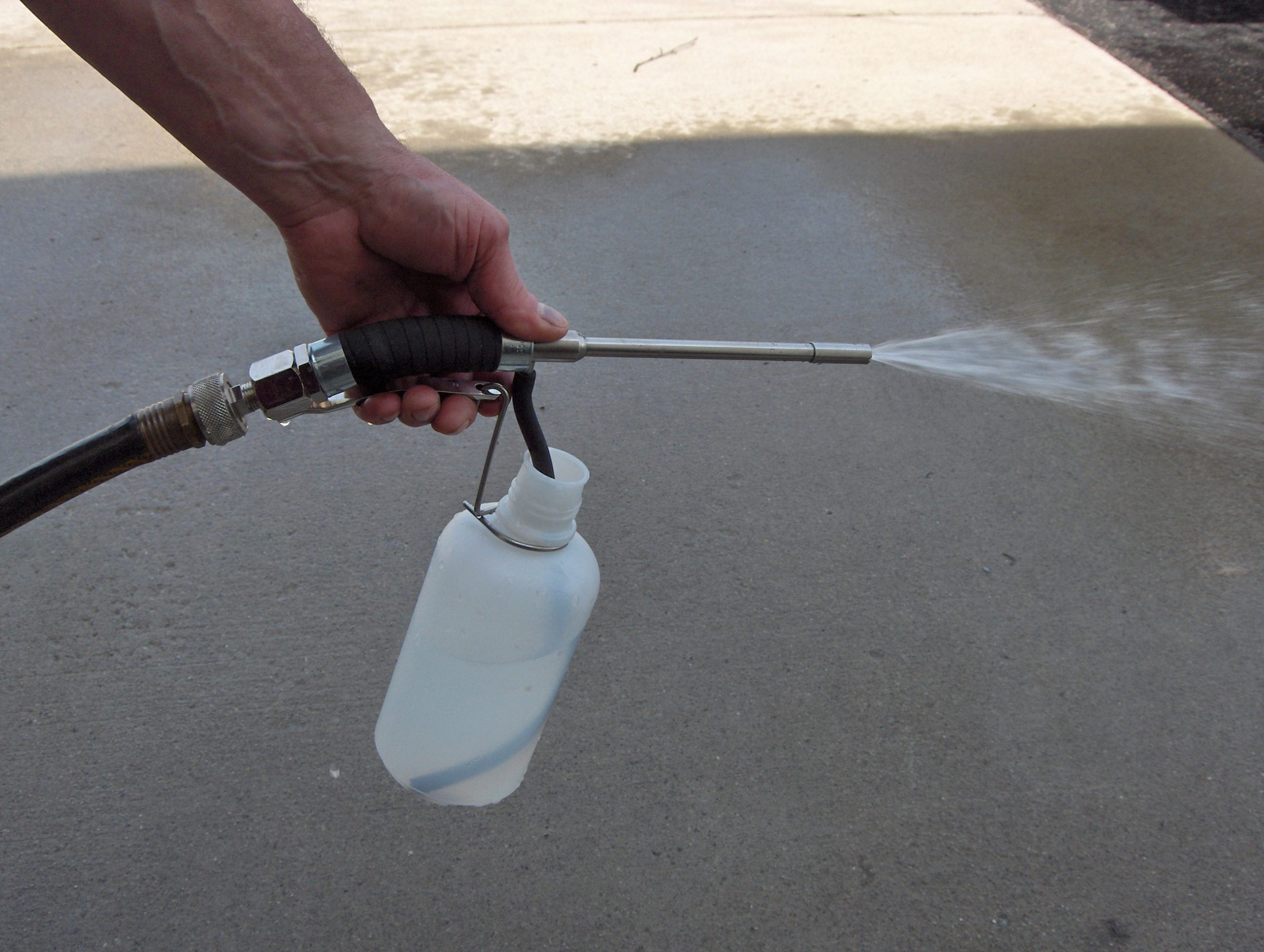

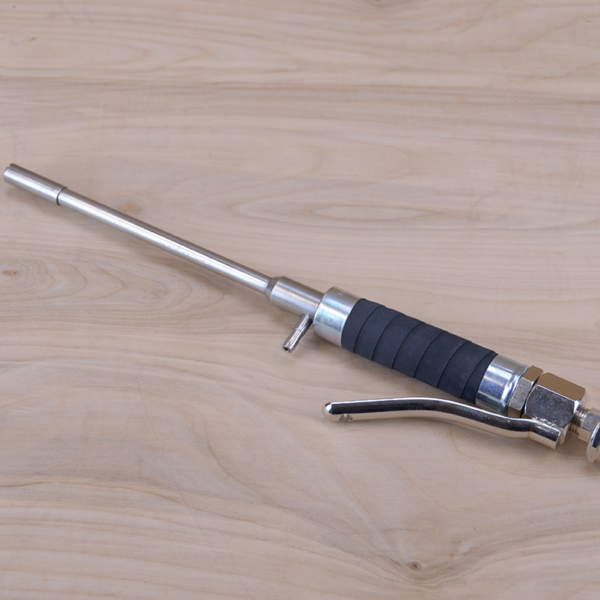

This Type B chemical sprayer with bottle assembly uses ordinary water pressure to deliver controlled chemical mixing without pumps or batteries. The 13″ sprayer is built with a stainless-steel flow path, nickel-plated brass valve, and a flexible three-ply neoprene sleeve rated from -40°F to 150°F with 360 psi burst pressure.
It includes a quart bottle siphon that keeps chemicals separate from the water line and lets users choose either a small orifice at approximately 10 oz/min or a regular orifice at approximately 2 qt/min for dosing control. The page also notes a 1/4″ NPT female inlet, QRS adapter, and all stainless-wetted parts for food-grade sanitation in dairies, breweries, and other wash-down environments.
Part Numbers
- 09G – Sprayer with bottle
- 09G-LV – Sprayer with bottle, low siphon rate (small orifice, approx. 10 oz/min)
Only logged in customers who have purchased this product may leave a review.
Warranty
Lonn Manufacturing Company Inc. guarantees their products free from defects in workmanship and materials under normal usage for a period of six months from date of purchase.
WARNING… These products may expose you to NICKEL, which is known to the state of California to cause cancer, birth defects or other reproductive harm. For more information go to P65 Warning Website
